"Power Core, Precise and Reliable — Analyzing the High-Performance Core Components of the Power End of the EFG Piston Pump"
Published time:
2025-09-01
Inside the massive body of the plunger pump, the power end is undoubtedly its "heart," converting the rotational power of the prime mover into the reciprocating linear motion that drives the medium. The reliability of its performance directly determines the output efficiency, stability, and service life of the entire pump unit. EF has been deeply engaged in the petroleum machinery field, crafting the core components of the plunger pump's power end—crankshaft, connecting rod, and crosshead—with exquisite craftsmanship to provide strong and stable power support for your demanding operations.
Inside the massive body of the plunger pump, the power end is undoubtedly its "heart," converting the rotational power of the prime mover into the reciprocating linear motion of the driven medium. The reliability of its performance directly determines the output efficiency, stability, and service life of the entire pump unit. EF has been deeply involved in the petroleum machinery field, crafting the core components of the plunger pump power end—crankshaft, connecting rod, and crosshead—with exquisite craftsmanship to provide strong and stable power assurance for your demanding operations.

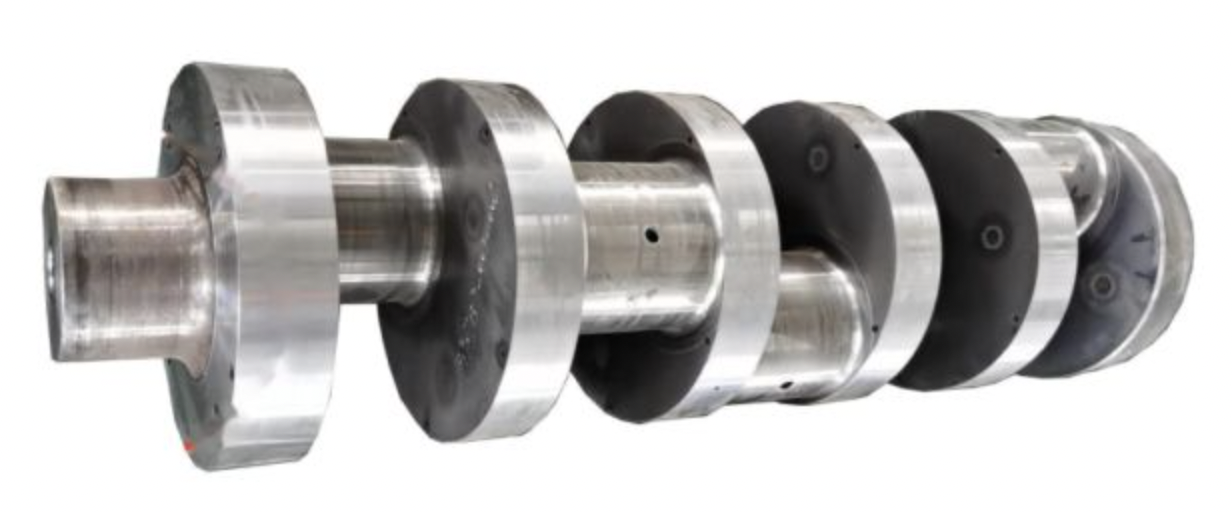

1. Crankshaft - The Core Hub of Power Conversion
Core Function: Withstands complex alternating bending and torsional loads, converting the motor's rotational motion into the reciprocating motion of the connecting rod, serving as the cornerstone of power transmission.
EF Product Features:
- High-quality forged steel material: Made from high-strength alloy steel forged as a whole, with dense internal structure, strong load-bearing capacity, and excellent fatigue resistance.
- Ultra-high precision machining: The main journal and crankpin are precisely CNC ground, with high dimensional accuracy and excellent surface finish, ensuring perfect fit with bearings and reducing wear.
- Advanced surface treatment: The journal surface is quenched and tempered, significantly enhancing surface hardness and wear resistance while maintaining core toughness, extending service life.

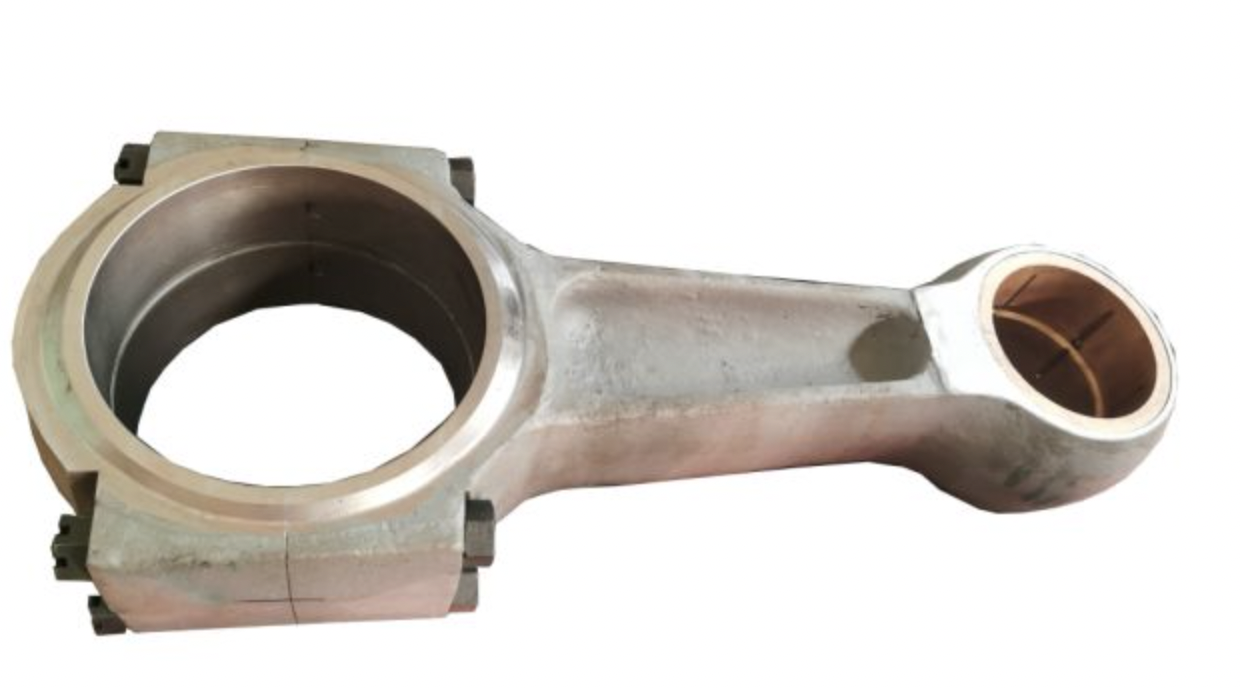

2. Connecting Rod - The Key Bridge of Power Transmission
Core Function: Connects the crankshaft and crosshead, converting the crankshaft's rotational motion into the crosshead's reciprocating linear motion, and transmitting enormous force to the hydraulic end.
EF Product Features:
- High-quality forged steel material: Made from high-strength alloy steel forgings, with dense internal structure, strong load-bearing capacity, and excellent fatigue resistance.
- Precision machining guarantee: The precision of the big and small end holes is extremely high, ensuring stable clearance fit with the crankshaft journal and crosshead pin, reducing impact and vibration.
- Comprehensive quality inspection: Each connecting rod undergoes non-destructive testing to eliminate internal defects, ensuring operational safety.
3. Crosshead - The Precision Node for Guidance and Force Transmission
Core Function: Moves precisely in a straight reciprocating motion within the slideway, transmitting the force from the connecting rod to the plunger rod, and bearing lateral forces to ensure the plunger's linear motion.
EF Product Features:
- High-strength wear-resistant body: The main body is made of high-strength alloy steel semi-cylindrical casting, featuring high strength and good wear resistance.
- Precise lubrication design: The surface is coated with a layer of Babbitt alloy, achieving self-lubrication, reducing friction, and preventing journal wear.
Summary of EF Power End Component Core Advantages:
- Outstanding reliability: From material selection, forging, heat treatment to precision machining, every step strictly follows high-standard quality systems to ensure excellent performance under heavy load and high-speed conditions.
- Longer service life: Excellent wear resistance and fatigue strength significantly extend overhaul intervals, reduce downtime, and lower total ownership costs.
- Excellent compatibility: Our connecting rods, crankshafts, crossheads, and other components are interchangeable with mainstream brand plunger pump power ends, making them a reliable choice for maintenance and upgrades.
- Comprehensive service support: We not only provide individual components but also offer power end assemblies, technical consultation, and a complete after-sales service system according to your needs.
Precision forging, power eternal. EF power end core components help you meet every challenge.
